Features
Proven Hydraulic Power — Unmatched force and cutting/spreading performance through reliable high-pressure hydraulic systems 10,500 PSI
Extended Reach — Industry-leading hose lengths exceeding 100 feet, giving rescuers greater flexibility and safer distancing from hazards.
Quick & Safe Connections — COAX couplers allow easy connecting and disconnecting under pressure, minimizing downtime during critical operations.
Variable Speed Control — Precise variable speed control valves for smooth, controlled operation under any load condition.
Built for Durability — Rugged, lightweight aircraft aluminum construction with a true Forever Warranty — designed and manufactured in the USA for the toughest rescue environments.

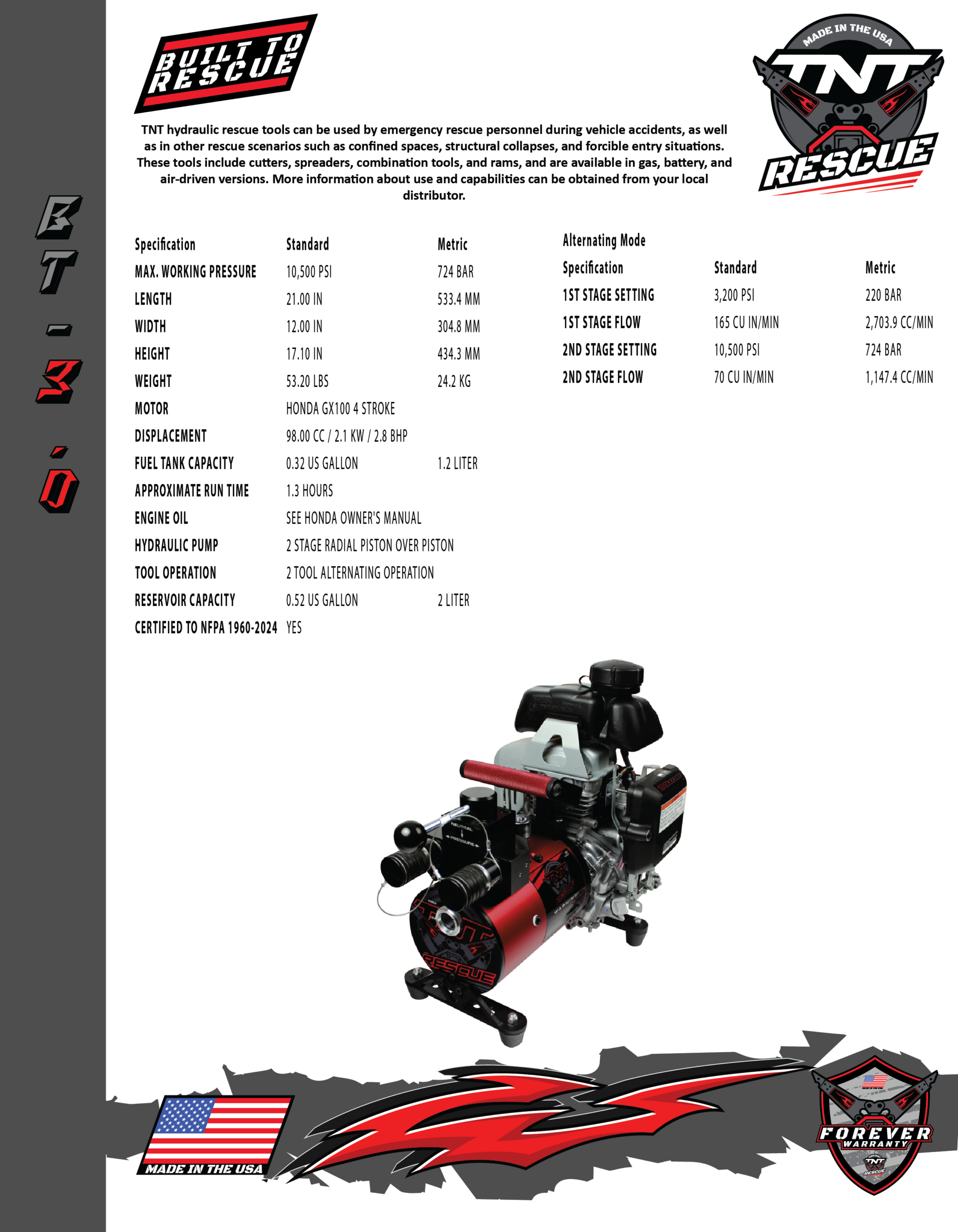

| Specification | Standard | Metric |
|---|---|---|
| MAX. WORKING PRESSURE | 10,500 PSI | 724 BAR |
| LENGTH | 21.00 IN | 533.4 MM |
| WIDTH | 12.00 IN | 304.8 MM |
| HEIGHT | 17.10 IN | 424.3 MM |
| WEIGHT | 53.20 LBS | 24.2 KG |
| MOTOR | HONDA GX100 4 STROKE | - |
| DISPLACEMENT | 98.00 CC / 2.1 KW / 2.8 BHP | - |
| FUEL TANK CAPACITY | 0.32 US GALLON | 1.2 LITER |
| APPROXIMATE RUN TIME | 1.3 HOURS | - |
| ENGINE OIL | SEE HONDA OWNER'S MANUAL | - |
| HYDRAULIC PUMP | 2 STAGE RADIAL PISTON OVER PISTON | - |
| TOOL OPERATION | 2 TOOL ALTERNATING OPERATION | - |
| RESERVOIR CAPACITY | 0.52 US GALLON | 2 LITER |
| CERTIFIED TO NFPA 1960-2024 | YES | - |
| Alternating Mode | ||
| Specification | Standard | Metric |
| 1ST STAGE SETTING | 3,200 PSI | 220 BAR |
| 1ST STAGE FLOW | 165 CU IN/MIN | 2,703.9 CC/MIN |
| 2ND STAGE SETTING | 10,500 PSI | 724 BAR |
| 2ND STAGE FLOW | 70 CU IN/MIN | 1,147.4 CC/MIN |
