Features
Proven Hydraulic Power — Unmatched force and cutting/spreading performance through reliable high-pressure hydraulic systems 10,500 PSI
Extended Reach — Industry-leading hose lengths exceeding 100 feet, giving rescuers greater flexibility and safer distancing from hazards.
Quick & Safe Connections — COAX couplers allow easy connecting and disconnecting under pressure, minimizing downtime during critical operations.
Variable Speed Control — Precise variable speed control valves for smooth, controlled operation under any load condition.
Built for Durability — Rugged, lightweight aircraft aluminum construction with a true Forever Warranty — designed and manufactured in the USA for the toughest rescue environments.

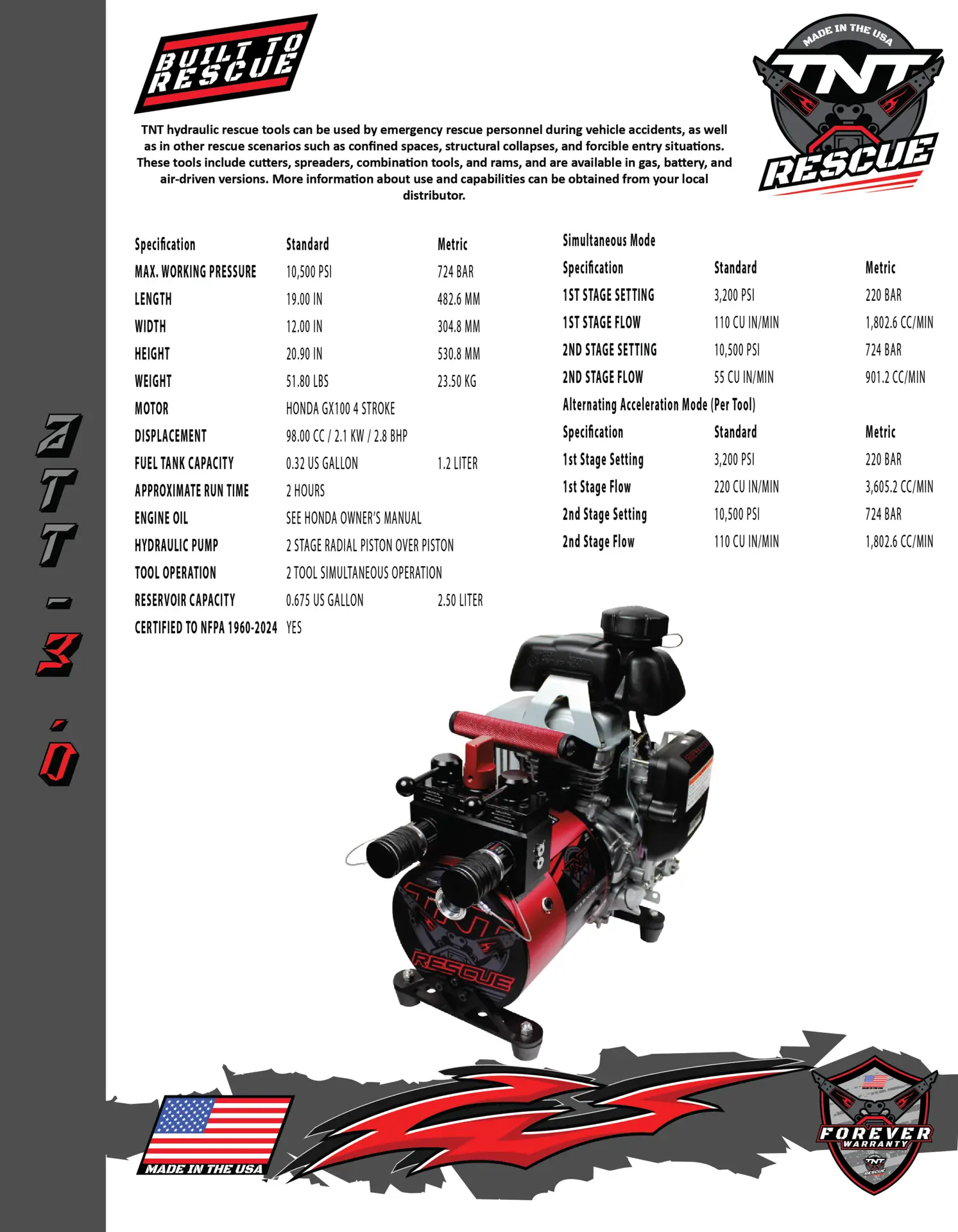

| Specification | Standard (Imperial) | Metric |
|---|---|---|
| MAX. WORKING PRESSURE | 10,500 PSI | 724 BAR |
| LENGTH | 19.00 IN | 482.6 MM |
| WIDTH | 12.00 IN | 304.8 MM |
| HEIGHT | 20.90 IN | 530.8 MM |
| WEIGHT | 51.80 LBS | 23.50 KG |
| MOTOR | HONDA GX100 4 STROKE | — |
| DISPLACEMENT | 98.00 CC / 2.1 KW / 2.8 BHP | — |
| FUEL TANK CAPACITY | 0.32 US GALLON | 1.2 LITER |
| APPROXIMATE RUN TIME | 2 HOURS | — |
| ENGINE OIL | SEE HONDA OWNER’S MANUAL | — |
| HYDRAULIC PUMP | 2 STAGE RADIAL PISTON OVER PISTON | — |
| TOOL OPERATION | 2 TOOL SIMULTANEOUS OPERATION | — |
| RESERVOIR CAPACITY | 0.675 US GALLON | 2.50 LITER |
| CERTIFIED TO NFPA 1960-2024 | YES | — |
| Simultaneous Mode | ||
| Specification | Standard | Metric |
| 1ST STAGE SETTING | 3,200 PSI | 220 BAR |
| 1ST STAGE FLOW | 110 CU IN/MIN | 1,802.6 CC/MIN |
| 2ND STAGE SETTING | 10,500 PSI | 724 BAR |
| 2ND STAGE FLOW | 55 CU IN/MIN | 901.2 CC/MIN |
| Alternating Acceleration Mode (Per Tool) | ||
| Specification | Standard | Metric |
| 1st Stage Setting | 3,200 PSI | 220 BAR |
| 1st Stage Flow | 220 CU IN/MIN | 3,605.2 CC/MIN |
| 2nd Stage Setting | 10,500 PSI | 724 BAR |
| 2nd Stage Flow | 110 CU IN/MIN | 1,802.6 CC/MIN |
