Legacy Hose Rescue Tools

The Legacy Continues!

Features

Proven Hydraulic Power — Unmatched force and cutting/spreading performance through reliable high-pressure hydraulic systems 10,500 PSI

Extended Reach — Industry-leading hose lengths exceeding 100 feet, giving rescuers greater flexibility and safer distancing from hazards.

Quick & Safe Connections — COAX couplers allow easy connecting and disconnecting under pressure, minimizing downtime during critical operations.

Variable Speed Control — Precise variable speed control valves for smooth, controlled operation under any load condition.

Built for Durability — Rugged, lightweight aircraft aluminum construction with a true Forever Warranty — designed and manufactured in the USA for the toughest rescue environments.

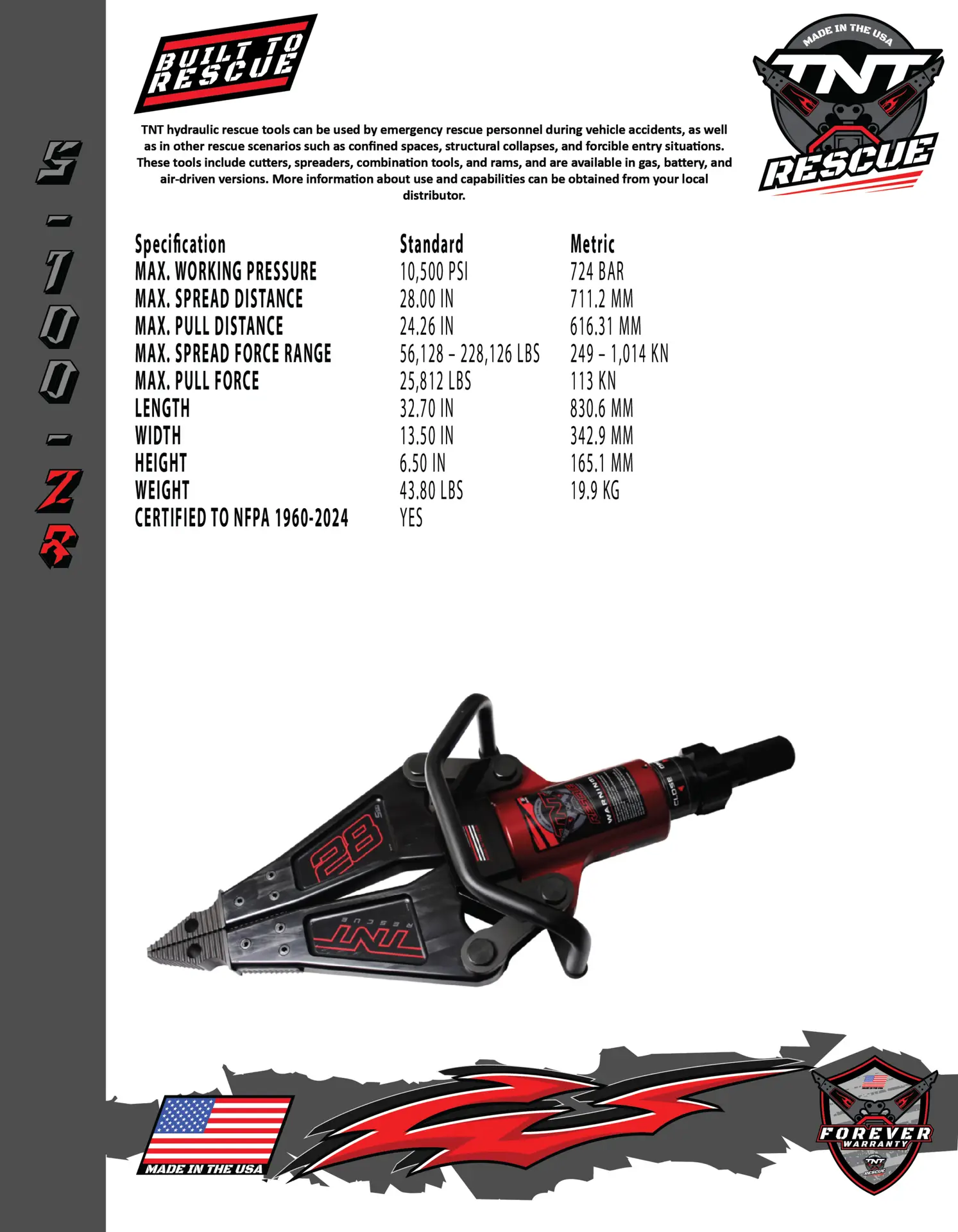

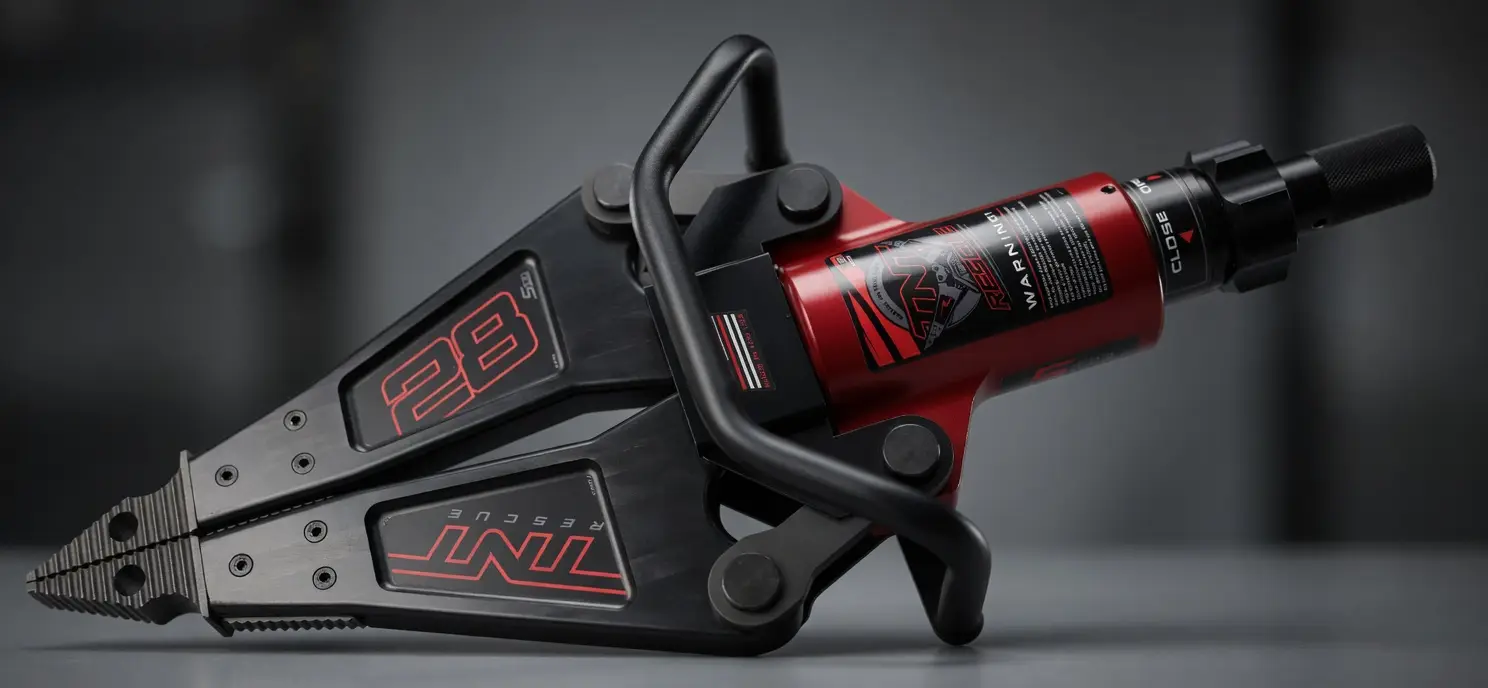

S-100-28 LEGACY hydraulic rescue tool
SpecificationStandard (Imperial)Metric
MAX. WORKING PRESSURE10,500 PSI724 BAR
MAX. SPREAD DISTANCE28.00 IN711.2 MM
MAX. PULL DISTANCE24.26 IN616.31 MM
MAX. SPREAD FORCE RANGE56,128 – 228,126 LBS249 – 1,014 KN
MAX. PULL FORCE25,812 LBS113 KN
LENGTH32.70 IN830.6 MM
WIDTH13.50 IN342.9 MM
HEIGHT6.50 IN165.1 MM
WEIGHT43.80 LBS19.9 KG
CERTIFIED TO NFPA 1960-2024YES
