Features
Proven Hydraulic Power — Unmatched force and cutting/spreading performance through reliable high-pressure hydraulic systems 10,500 PSI
Extended Reach — Industry-leading hose lengths exceeding 100 feet, giving rescuers greater flexibility and safer distancing from hazards.
Quick & Safe Connections — COAX couplers allow easy connecting and disconnecting under pressure, minimizing downtime during critical operations.
Variable Speed Control — Precise variable speed control valves for smooth, controlled operation under any load condition.
Built for Durability — Rugged, lightweight aircraft aluminum construction with a true Forever Warranty — designed and manufactured in the USA for the toughest rescue environments.

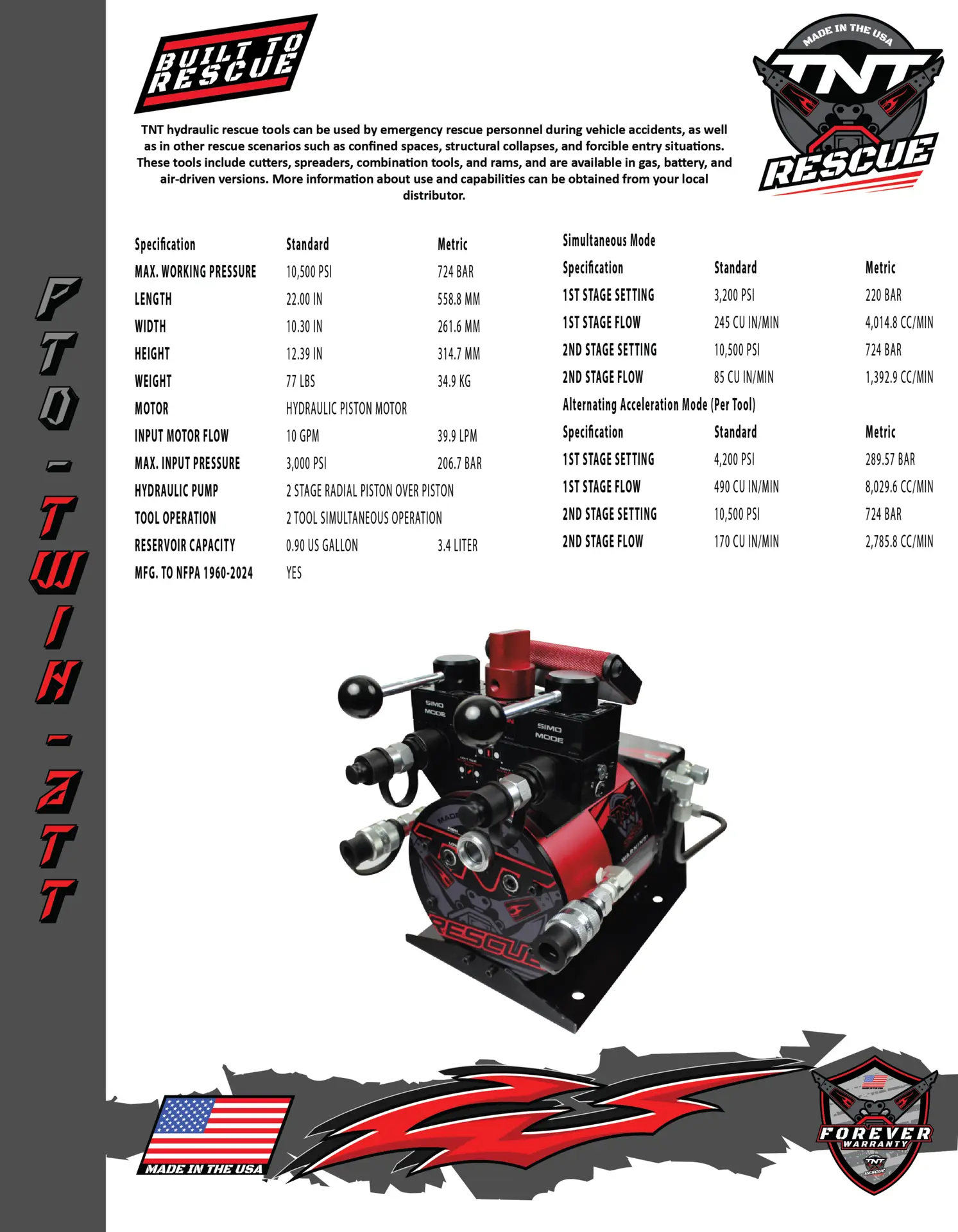

| Specification | Standard (Imperial) | Metric |
|---|---|---|
| MAX. WORKING PRESSURE | 10,500 PSI | 724 BAR |
| LENGTH | 22.00 IN | 558.8 MM |
| WIDTH | 10.30 IN | 261.6 MM |
| HEIGHT | 12.39 IN | 314.7 MM |
| WEIGHT | 77 LBS | 34.9 KG |
| MOTOR | HYDRAULIC PISTON MOTOR | — |
| INPUT MOTOR FLOW | 10 GPM | 39.9 LPM |
| MAX. INPUT PRESSURE | 3,000 PSI | 206.7 BAR |
| HYDRAULIC PUMP | 2 STAGE RADIAL PISTON OVER PISTON | — |
| TOOL OPERATION | 2 TOOL SIMULTANEOUS OPERATION | — |
| RESERVOIR CAPACITY | 0.90 US GALLON | 3.4 LITER |
| MFG. TO NFPA 1960-2024 | YES | — |
| Simultaneous Mode | ||
| Specification | Standard | Metric |
| 1ST STAGE SETTING | 4,200 PSI | 289.57 BAR |
| 1ST STAGE FLOW | 245 CU IN/MIN | 4,014.8 CC/MIN |
| 2ND STAGE SETTING | 10,500 PSI | 724 BAR |
| 2ND STAGE FLOW | 85 CU IN/MIN | 1,392.9 CC/MIN |
